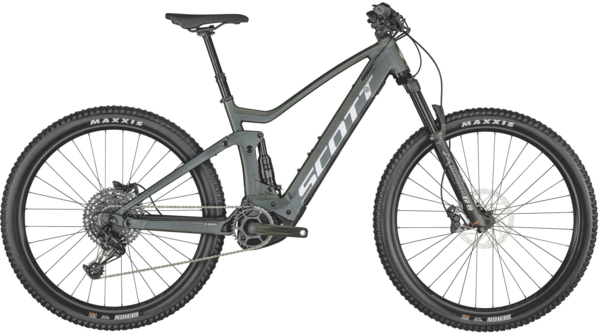

Scott Strike eRide 930

Scott Strike eRide 930
$4,949.99
$5,999.99
Color:
Black
Size:
Medium
Please select options

Details

Looking to head off road? The Strike eRIDE 930 is the definition of comfort for a full suspension e-MTB. State of the art integration, high-end components and a quality Bosch drive unit combine to give you a solid choice for any outing. Rack and fender available.

KEY FEATURES
- Strike eRIDE Alloy Frame
- Marzocchi Z2 Air 140mm
- X-Fusion Nude, 140mm, TwinLoc
- SRAM SX Eagle 12 Speed
- Bosch CX, PowerTube up to 1125Wh
- Shimano 4 Piston Disc Brakes
- Maxxis Rekon Tires
- Syncros Dropper Post and Parts
- Bosch Light Cable F&R

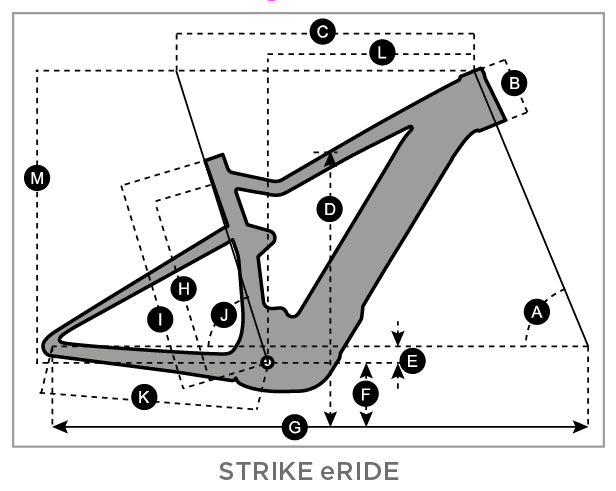

Geometry

Geometry Chart:
Frame SizeSmall / 900Medium / 900Large / 900X-Large / 900
A. HEAD TUBE ANGLE 64.8 ° 64.8 ° 65.0 ° 65.0 °
B. HEAD TUBE LENGTH 120.0 MM 125.0 MM 135.0 MM 145.0 MM
C. TOP TUBE HORIZONTAL 585.0 MM 605.0 MM 635.0 MM 665.0 MM
D. STANDOVER HEIGHT 762.4 MM 766.6 MM 798.1 MM 809.8 MM
E. BB OFFSET -30.0 MM -30.0 MM -30.0 MM -30.0 MM
F. BB HEIGHT 347.0 MM 347.0 MM 347.0 MM 347.0 MM
G. WHEEL BASE 1,215.2 MM 1,236.1 MM 1,258.4 MM 1,290.2 MM
H. BB CENTER TO TOPTUBE CENTER
I. BB CENTER TO TOP OF SEATTUBE 410.0 MM 440.0 MM 490.0 MM 540.0 MM
J. SEAT ANGLE 75.4 ° 75.4 ° 74.8 ° 74.8 °
K. CHAINSTAY 465.0 MM 465.0 MM 465.0 MM 465.0 MM
L. REACH 421.8 MM 440.6 MM 460.7 MM 488.3 MM
M. STACK 626.6 MM 631.2 MM 641.4 MM 650.4 MM
N. STEM LENGTH 50.0 MM 50.0 MM 60.0 MM 70.0 MM
O. TRAIL 128.8 MM 128.8 MM 127.2 MM 127.2 MM

Geometry

Geometry Chart:
Frame SizeSmall / 700Medium / 700Large / 700X-Large / 700
A. HEAD TUBE ANGLE 65.4 ° 65.4 ° 65.6 ° 65.6 °
B. HEAD TUBE LENGTH 120.0 MM 125.0 MM 135.0 MM 145.0 MM
C. TOP TUBE HORIZONTAL 583.4 MM 603.4 MM 633.3 MM 663.3 MM
D. STANDOVER HEIGHT 748.8 MM 753.3 MM 785.4 MM 797.4 MM
E. BB OFFSET -22.1 MM -22.1 MM -22.0 MM -21.9 MM
F. BB HEIGHT 337.9 MM 337.9 MM 338.0 MM 338.1 MM
G. WHEEL BASE 1,213.7 MM 1,234.6 MM 1,256.9 MM 1,288.7 MM
H. BB CENTER TO TOPTUBE CENTER
I. BB CENTER TO TOP OF SEATTUBE 410.0 MM 440.0 MM 490.0 MM 540.0 MM
J. SEAT ANGLE 76.0 ° 76.0 ° 75.4 ° 75.4 °
K. CHAINSTAY 462.8 MM 462.8 MM 462.8 MM 462.8 MM
L. REACH 428.3 MM 447.1 MM 467.2 MM 494.7 MM
M. STACK 622.2 MM 626.6 MM 636.7 MM 645.6 MM
N. STEM LENGTH 50.0 MM 50.0 MM 60.0 MM 70.0 MM
O. TRAIL 120.2 MM 120.2 MM 118.8 MM 118.8 MM

Specs

Frame Alloy Frame / Virtual 4 link kinematic VLK, 27.5" and 29" compatible / geo adj. / Boost 148x12mm, 140mm travel / Bosch Gen4 / Integr. removable Battery, Tapered Headtube E2, Central Kickstand Mount, Range Booster Ready
Fork Marzocchi Z2 Air / eMTB+, Rail 3 / 3-Modes / 15x110mm QR axle / tapered steerer, 44mm offset / Reb. Adj. / Lockout / 140mm travel
Rear Shock X-Fusion NUDE Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Lockout-Traction Control-Descend, Reb. Adj., Travel 140-90-Lockout / 185x50mm
Rims Syncros MD30 / 32H / 30mm / Pin Joint, Tubeless ready
Hubs Front: Formula CL-811 / 15x110mm
Rear: Formula CL-148S / Boost 148x12mm
Spokes Stainless Black
Tires Front: Maxxis Rekon / 29x2.6" / 60TPI Wire Bead, EXO, Dual
Rear: Maxxis Rekon / 29x2.6" / 60TPI Wire Bead, EXO, Dual
Crankset FSA CK-320 / 165mm / 34T
Chainrings SRAM Eagle 34T DM / Steel
Shifters SRAM SX Eagle Single Click
Rear Derailleur SRAM SX Eagle / 12 Speed
Cassette/Freewheel SRAM PG1210 / 11-50 T
Chain SRAM SX Eagle
Brakes Shimano BR-MT420 4 Piston
Rotors Front: SM-RT30 CL 203mm / Rear: RT-EM300 CL 203mm
Handlebars Syncros Hixon 2.0 Rise / Alloy 6061D.B., 20mm rise / 8° / 760mm, Syncros Comfort lock-on grips
Stem Syncros FL2.0 / 6061 Alloy, L-Shape Spacer & Top Cap / 31.8mm / 6° / 1 1/8"
Headset Syncros ER2.0 Press Fit E2 / Tapered 1.5"-1 1/8", OD 52/62mm / ID 44/56mm
Seatpost Syncros Duncan Dropper Post 2.5, 31.6mm / S size 100mm / M 125mm / L & XL 150mm
Saddle Syncros ER2.5
Pedals Sold separately
Accessories & Extras Lights: Bosch Light Cable pre-installed F&R
Remote System: SCOTT TwinLoc Suspension System, 3 modes front and rear / integ. Grip clamp
Motor Bosch Performance CX : 20mph
Battery PowerTube 625Wh
Controller/Display Bosch Purion
Charger 4A Charger

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Black / Medium 192820448565 280726007 5634
